Description

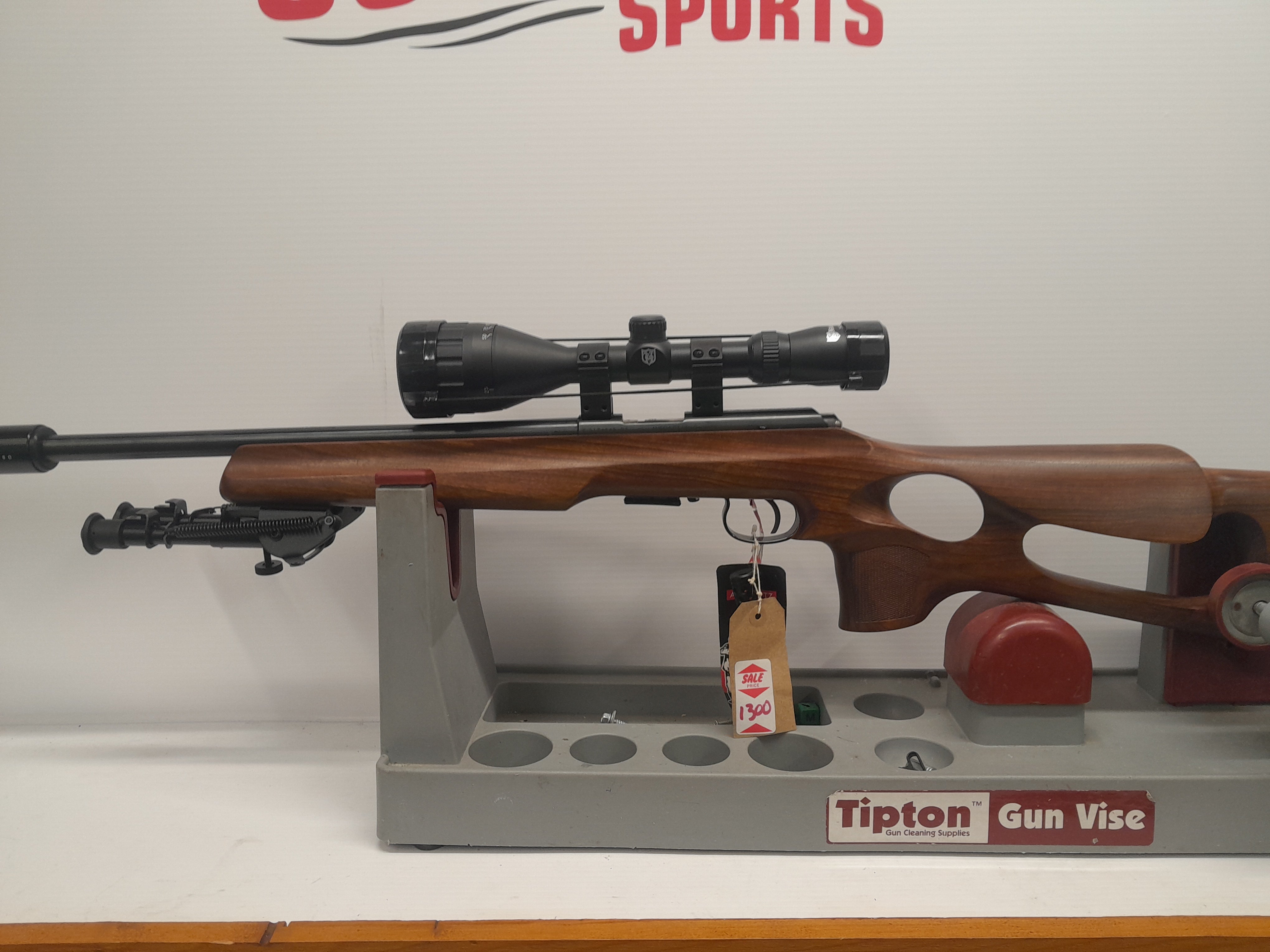

Make: Anschutz
Model: 1517 Single-Stage Heavy Barrell
Type: Bolt Action
Calibre: .17HMR
Condition: New
Threaded: No
Stock: Timber
Additional Info: Ref: F1786, F1787, F1825
Guns with Ref letter F are located in Mullingar.
Guns with Ref letter G are located in Ballymahon.
However, with 24 hours notice we can have any gun transported to either location for viewing.
Barreled Action
The action is used in the ANSCHÜTZ Luxus repeaters 1416/1417 and 1516/1517. This is a bolt action with cam cocking, claw extractor, additional cartridge holder and ejector. Telescopic sight mounting is by an 0.43" wide ANSCHÜTZ Wave Style V-block dovetail rail or by additional drilled and tapped holes. The sliding safety catch onthe right hand side blocks the trigger sear in the safe position and simultaneously lifts the trigger sear and bolt release latch. The bolt can also be opened in the safe position, allowing unloading the firearm with the safety engaged.
Technical Data
Material: Steel
Locking: Locking lug
Finsih: blued
Trigger
ANSCHÜTZ target two-stage and single-stage triggers have always set the standard for quality, reliability, and precision. It is not without reason that ANSCHÜTZ triggers are known as the best in the world. Many manufacturers offer adapters for integration of this masterpiece of the German gunsmith‘s art into their firearms. The light weight, hardened and finely ground trigger components facilitate fast and consistent trigger release.
Technical Data
Type: Single stage trigger 5094 D
Version: right
Color of the trigger shoe: Black
Safety: Sliding safety catch on the right side
Trigger weight, adjusted (g): 1200
Adjustment of the trigger weight (mm): 1000-2000

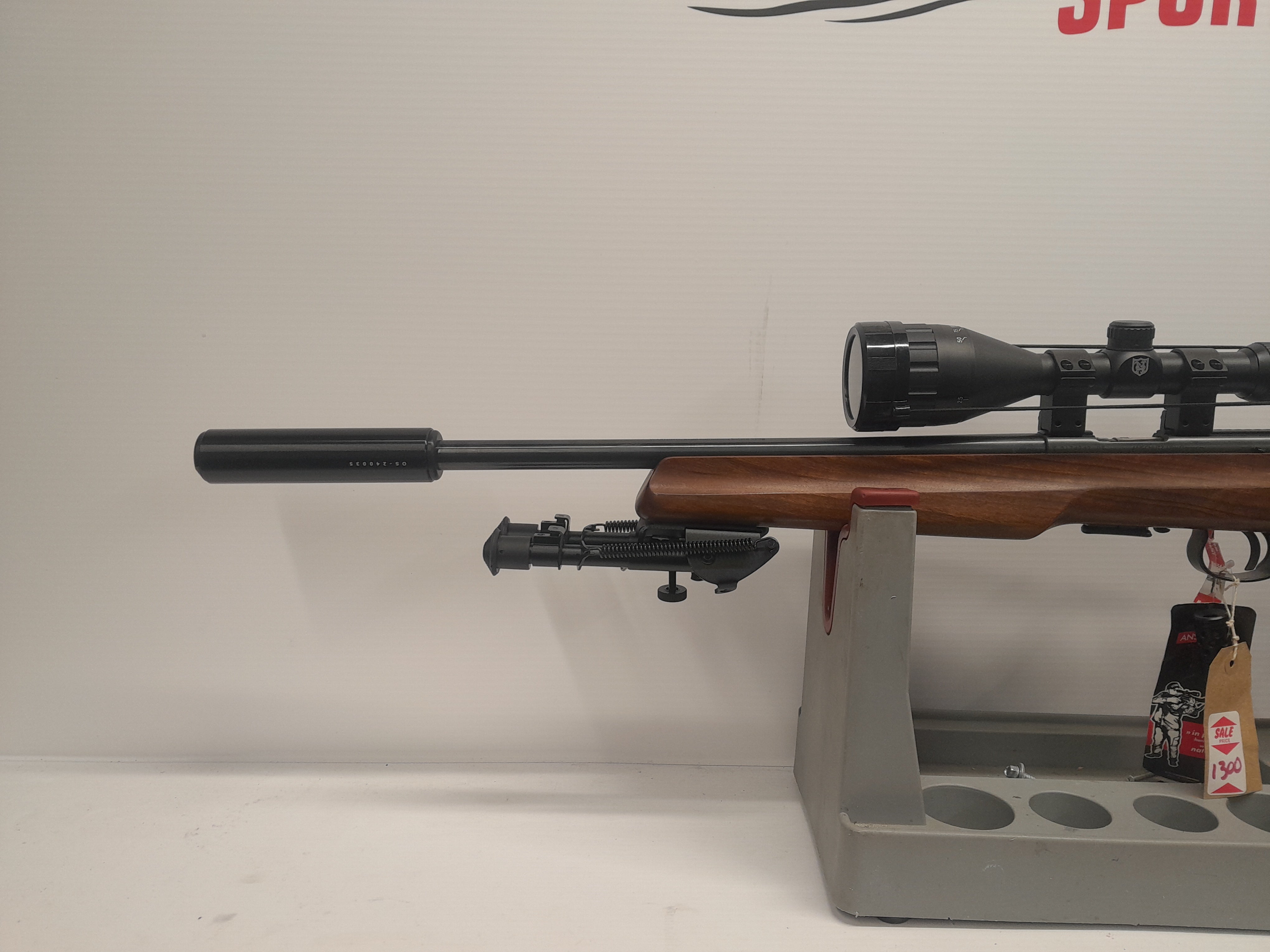

Barrel
The heavy cylindrical precision barrels with excellent shooting performance are manufactured according to the same ANSCHÜTZ special process, used for the manufacture of the world-famous ANSCHÜTZ target barrels. The same also applies to the manufacturing process of the chamber and the recessed muzzle.
Technical Data
Material: Steel
Finish: blued
Caliber: .17 HMR
Length of twist (mm): 228
Number of grooves: 6
Rifling (mm): 569
Barrel verison: heavy
Muzzle diameter (mm): 19
Barrel length (mm): 584

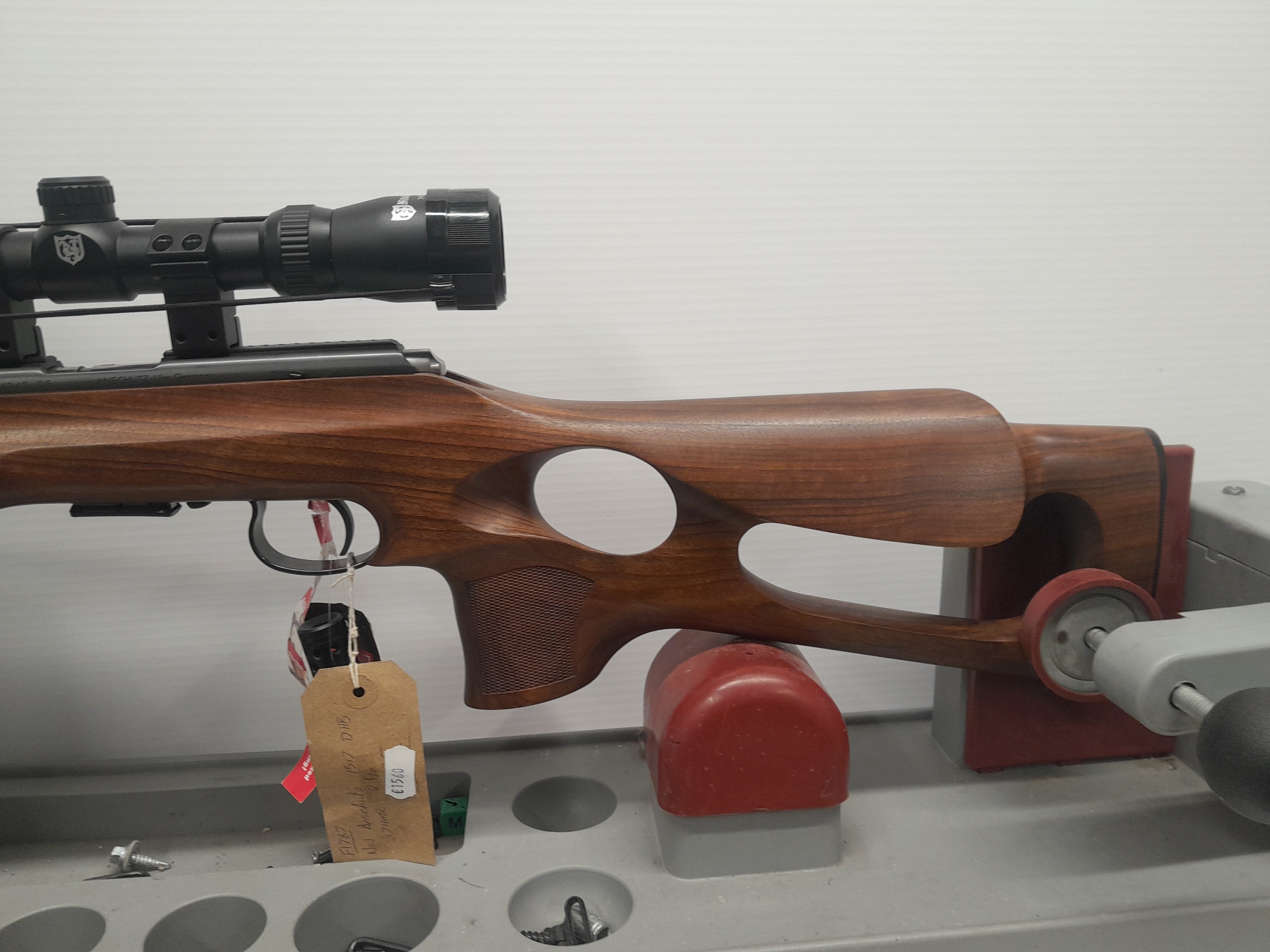

Stock
Well-balanced oiled walnut thumbhole stock with roll-over cheek piece, wide beavertail stock and non-slip checkering on the pistol grip, black synthetic butt plate and sling swivel studs.
Advantages of the thumbhole stock:
The modern, ergonomic ANSCHÜTZ thumbhole stock is easy to handle and provides improved shooting results because your finger and the ball of your hand are always in the optimum position on the pistol grip. The controued lines of the pistol grip and wrist of the stock keeps your trigger finger in the same position on the trigger blade. In addition, the thumbhole stock provides a rest for your middle finger, which combined with the anatomically-perfect pistol grip provides a stress-free, relaxed shooting position. The ANSCHÜTZ thumbhole stock allows your thumb to remain fully relaxed. The ergonomically designed straight comb with roll-over cheek piece ensures perfect head and eye positioning in every situation and type of position; a key element which is important for precision shooting.
Technical Data
Length of stock (mm): 745
Weight (g): 1070
Stock type: Thumbhole stock
Butt plate: Synthetic butt plate
Material: Walnut
Stock color: natural
Stock finish: oiled
Length of pull (mm): 360
